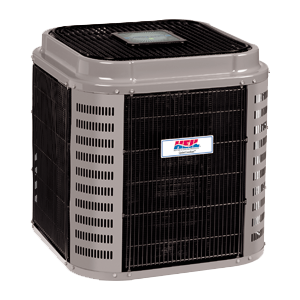

HCH6 16 SEER Two Stage Communicating Heat Pumps

Heil QuietComfort DXT+ Two-Stage Heat Pumps featuring Observer communicating system are designed to take you home to a new level of comfort and efficiency. Teamed with our Observer communicating wall control and a Heil communicating fan coil or gas furnace, the QuietComfort DVT+ functions as a part of a complete communicating home comfort system. Various components of the system talk to each other electronically, fine-tuning comfort levels while maximizing energy savings.

  • Copeland Scroll UltraTech compressors on all models
  • Crankcase heater factory installed
  • Suction line accumulator factory installed
  • Bi-flow filter-drier supplied with every unit for field installation
  • Integrated solid state control with Time-Temperature Defrost
  • High and low pressure switches
  • Discharge gas thermostat
  • Communicating, self-configuring operation when used with Observer Wall Control (TSTAT0101SC)
  • Outdoor temperature sensor factory installed
  • Ball bearing ECM fan motors on all models
  • High performance compressor sound shield standard
  • Text based diagnostics with Observer communicating wall control
  • Factory charged with R-410A refrigerant
  • High gloss, baked-on powder coat finish over galvanized steel
MODELCooling Cap. MBtuHSEERHeating Cap.MBtuHHSPFRefrigerant Charge Oz.Line SizeDimensions HxWxDWeight Lbs.
HCH624GKA24.0 17.0 25.0 9.0 209 3/8-3/4 40.1x35x35 249
HCH636GKA36.4 17.0 35.8 9.5 219 3/8-7/8 40.1x35x35 270
HCH648GKA47.0 16.0 47.0 9.0 220 3/8-7/8 40.1x35x35 302
HCH660GKA56.5 16.0 58.0 9.1 236 3/8-7/8 47.9x35x35 323

Warranty Information

  • All Parts for 120 months - No Hassle Unit Replacement With Prompt Online Registration
  • All Parts for 120 months -

Available Documents
